• PLZ-3J series AC flash aviation obstruction light产品介绍：Under the AC 220V, the PLZ-3J series can be used alone or uesd with the controller (or master caution light )( Master warning light / Master Call Light / main light) together to make aviation obstruction lights flash synchronously. Moreover, by installing wireless digital clock module in the single-flash or the controller ( master caution light ), it can achieve the effect that more than one light or one group of lights flash synchronously.适用范围：By using the wireless digital clock module, the aviation obstruction lights can be divided into many groups to achieve synchronous flash in different zones, especially for some buildings and structure regions where is difficult to realize synchronous work
    产品技术参数表：

    Main Parameter

    Name

    Parameter

    Type

    PLZ-3J/3JL PLZ-3JL/ZK

    FAA Category

    L-864

    Peak Bright Intensity

    2,000cd

    Peak Current

    < 800mA

    Flash Frequency

    20～60Time/minute

    Light Source Life

    80,000 hours

    Power supply style

    AC220V

    Power Consumption

    10W

        Circumstance Temperature TemperatureYTemperatureTemperatureTemperature

    -40°C～+70°C

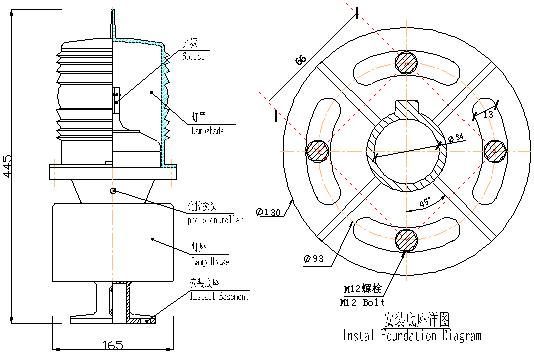

    Overall Dimension(mm)

    165×130×445

    Installing Dimension(mm)

    66×66(4×Φ13.5)

    Protection Class

    IP65

    Photocell Ambient Brightness

    50cd/m2

    Emitting Color

    red

    Net Weight

    2.5Kg
